Product Overview

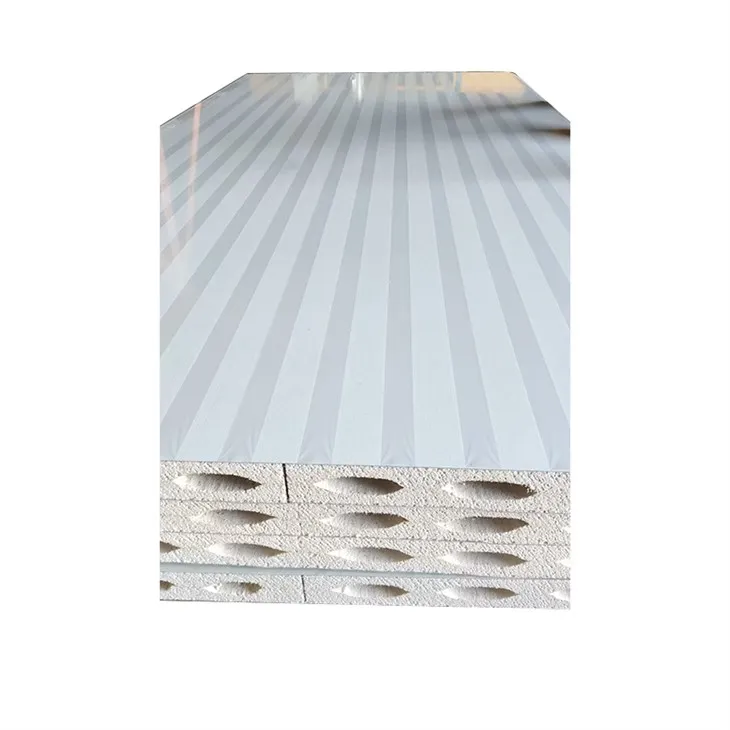

A Clean Room Sandwich Panel is a factory-made wall or ceiling component used to build controlled-environment enclosures. It is commonly installed in pharmaceutical plants, electronics facilities, food and beverage processing areas, and laboratories. The finished partition or ceiling provides the smooth, sealed, cleanable internal surface required in cleanroom spaces.
Core Advantages
0.35–0.60 mm Metal Facings
Both faces can be made from color-coated steel or 304 stainless steel in 0.35–0.60 mm thickness. These metal facings suit corridors, production rooms, and equipment areas that are wiped often or exposed to trolley contact and disinfectant cleaning. The closed surface does not shed dust, and anti-static or antibacterial treatments can be specified when required.
0.023–0.045 W/(m·K) Thermal Conductivity
Thermal conductivity is 0.023–0.045 W/(m·K), and compressive strength is at least 100 kPa. Where a panel separates a conditioned clean area from a service corridor or another room with a different temperature setting, the insulated core reduces heat transfer. The panel body also keeps its shape during normal handling and installation pressure.
Class A / B1 Fire Options
Fire performance is available in Class A or Class B1 configurations, while rock-wool-core panels can reach Class A2. This gives projects a choice of core when partitions are installed near process equipment, electrical service zones, or escape routes. The fire requirement can be matched without changing the basic modular wall system.
Main Parameters
|
Parameter |
Standard Value |
|
Core Type |
Rock wool / Magnesium oxide / Polyurethane / Paper honeycomb / Aluminum honeycomb |
|
Total Thickness |
50 mm / 75 mm / 100 mm / 150 mm / 200 mm |
|
Fire Rating |
Class A / Class B1 (rock wool core: Class A2) |
|
Clean Level |
ISO Class 5–9, GMP compliant |
|
Compressive Strength |
≥100 kPa |
Customization
Core Material
Core options include rock wool, magnesium oxide, polyurethane, paper honeycomb, and aluminum honeycomb.
Panel Thickness
Overall thickness can be specified at 50, 75, 100, 150, or 200 mm.
Panel Size
Standard widths are 950 or 1,150 mm, with lengths up to 6,000 mm; project-specific lengths can be produced from approved drawings.
Quality Control
- Panel production is carried out according to the EN 14509 standard. During fabrication, the facing sheets, insulation core, bonding, panel dimensions, and joint formation are checked against the approved product specification.
- Incoming-material records, batch traceability, in-process inspection, nonconformance handling, and final release records are managed according to the ISO 9001 quality management system.
- Finished panels are checked for dimensional tolerance, flatness, core-to-facing bonding, and joint fit. Thermal, compression, and fire-performance requirements are verified against the ordered specification before packing. Final inspection covers 100% of the panels, and third-party inspection is available.
FAQ
Q: Can you provide samples before production?
A: Samples are available for selected configurations; freight is charged separately.
Q: What payment terms are available?
A: Standard products use a 30% deposit; customized products use a 50% deposit, with the balance due before pickup.
Q: Which joint systems are available?
A: Male-female joints and cam-lock connections are available.
Q: What cleanroom classes can these panels be used in?
A: They are configured for projects from ISO Class 5 to ISO Class 9.
